DMA 5.8G 300Mbps Wireless Bridge
Model: COME-WB-L8
Description:
COME-WB-L8 is a high-performance, high-speed outdoor long-distance wireless bridge with characteristics such as long transmission distance, strong penetration ability, and strong anti-interference ability.
Main Features:
- The use of specialized TVS lightning protection devices enhances the product's ability to withstand harsh environments.
- Built in 18dBi dual polarization directional antenna, up to 8km for PTP/ PTmP distance.
- Supports both 24 PoE power supply and 12V DC power supply.
- TDMA intelligent dynamic polling protocol, support ATPC, IPv6.
Hardware Specification:
|
Model |
COME-WB-L8 |
||||
|
CPU |
AR9344 |
||||
|
Flash |
16MB |
||||
|
DDR |
64MB |
||||
|
5G frequency |
5.150GHz～5.850GHz |
||||
|
5G WIFI protocol |
802.11 a / n |
||||
|
Max rate |
300Mbps |
||||
|
Antenna |
Internal 18dBi directional panel antenna |
||||
|
5G TX Power |
802.11a |
54M |
22±2dBm |
6M |
23±2dBm |
|
802.11n HT20 |
MCS7 |
21±2dBm |
MCS0 |
23±2dBm |
|
|
802.11n HT40 |
MCS7 |
20±2dBm |
MCS0 |
23±2dBm |
|
|
5G Receiving Sensitivity |
802.11a |
54M |
-70dBm |
6M |
-83dBm |
|
802.11n HT20 |
MCS7 |
-67dBm |
MCS0 |
-83dBm |
|
|
802.11n HT40 |
MCS7 |
-64dBm |
MCS0 |
-83dBm |
|
|
5G EVM |
802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB； |
||||
|
ppm |
±20ppm |
||||
|
WAN |
1*10/100 WAN, support 24V POE |
||||
|
LAN |
1*10/100 LAN |
||||
|
Power |
PoE 24V，DC 12~24V |
||||
|
Max Power Consumption |
<8W |
||||
|
Reset |
Press 2-5 seconds for pairing, 10seconds for factory reseting. |
||||
|
Indicators |
SYS, WAN, LAN, 5G WIFI, Signal*4 |
||||
|
Dimension |
268mm*115mm*45mm |
||||
|
Weight |
0.48kg |
||||
|
Temperature |
Working: -20°C to 55°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing) |
||||
|
IP Grade |
IP65 |
||||
|
ESD |
Air:±8K, Touch:±6K |
||||
|
Electrical Surge |
Common Mode: 2K, Differential Mode: 1K |
||||
Firmware Specification
|
Working mode |
Access Point (Automatic WDS), Access Point (TDMA3), Site (WDS/TDMA3), Site (ARPNAT) |
|
Wireless |
Intelligent dynamic polling, automatic channel selection, automatic modulation mode selection, automatic transmission power control (ATPC) |
|
Wireless Safety |
WPA/WPA2 personal encryption, WPA/WPA2 enterprise encryption, WACL, user isolation |
|
Wireless QoS |
TDMA implements 4 queue priority |
|
Network mode |
IPv4 IPv6 |
|
VLAN |
Support VLAN and VLAN transparent transmission |
|
WAN protocol |
Static IP，DHCP client |
|
Service |
DHCP service, SNMP service, NTP client, route tracking, ping watchdog |
|
Management |
HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet |
|
Built Tool |
Site survey, connection testing, antenna calibration |
Antenna Specification
|
Horizontal polarization |
Vertical polarization |
|
|
|
|
Built in Antenna |
|
|
Working frequency |
5180 ~5850 MHz |
|
Gain |
18 dBi |
|
Polarization mode |
Vertical/horizontal dual polarization |
|
Horizontal beam angle |
30° |
|
Vertical beam angle |
15° |

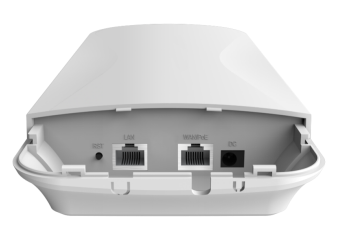

Interface:

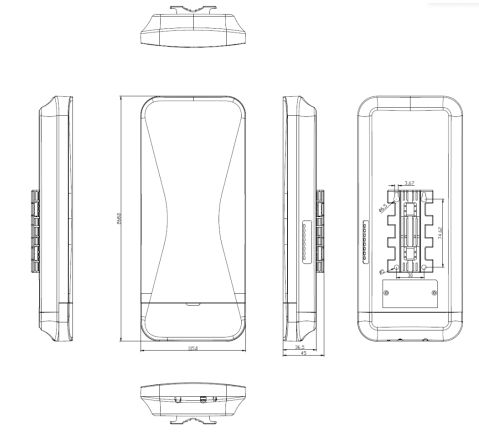

Dimension:
Accessory
|
CPE |
1 |
|
PoE adapter |
1 |
|
Guide manual |
1 |
|
Gift Box |
1 |
