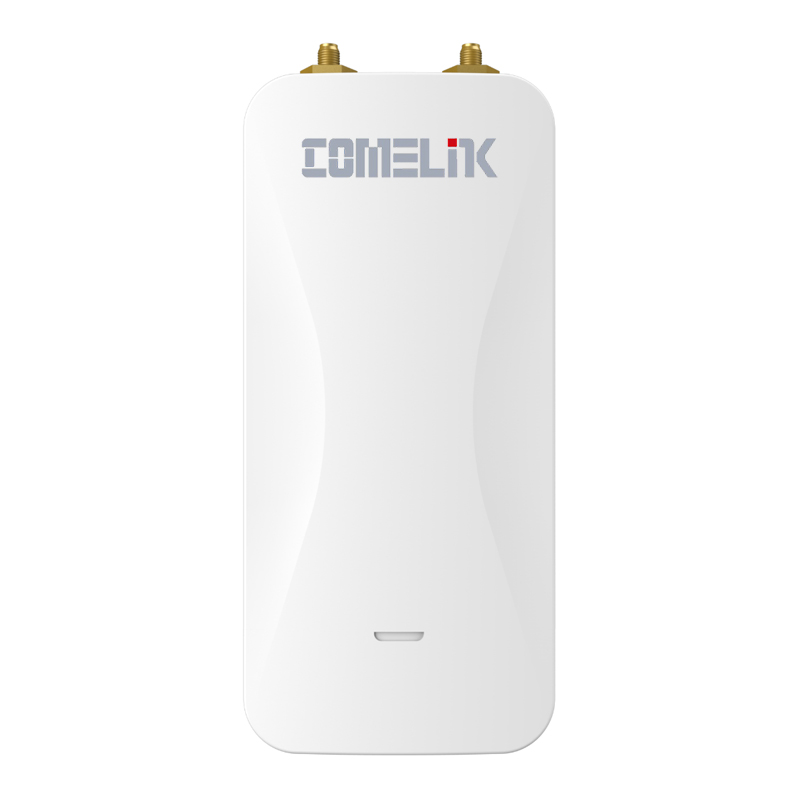

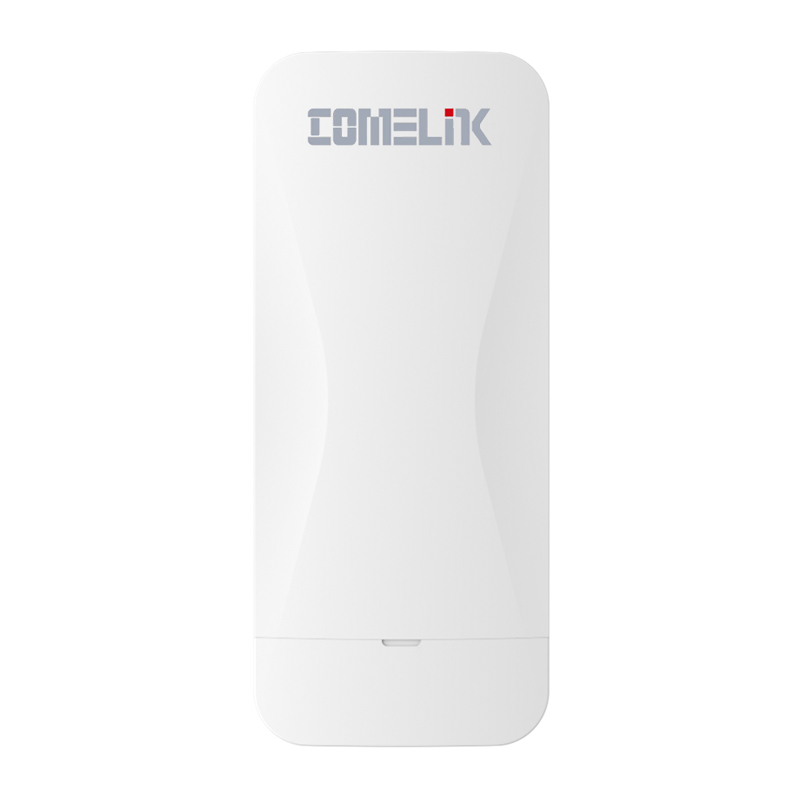

Outdoor Wireless 11ac Bridge
Model: COME-WB-S-Ex
Short Specification：
COME-WB-S-Ex is a high-performance, high-speed outdoor long-distance wireless bridge. It has the characteristics of long transmission distance, strong penetration ability, and strong anti-interference ability.
Product Highlight:
- SMA connector (outer pattern and inner pin) can be adapted to different antennas and can transmit up to 20 kilometers.
- The use of dedicated TVS lightning protection devices improves the product's ability to operate in harsh environments.
- Support non-standard frequency points: 4.9-6.1GHz
- Support 5, 10MHz narrowband operating bandwidth
- Support ATPC, IPv6, TDMA
Hardware Specification：
|
Model |
COME-WB-S-Ex |
||||
|
CPU |
QCA9563+QCA9882+QCA8334 |
||||
|
Flash |
SPI NOR 16MB |
||||
|
DDR |
DDR2-64MB |
||||
|
5G Frequency |
5.150GHz～5.850GHz |
||||
|
5G Protocol |
802.11 a / n /ac |
||||
|
Data Rate |
900Mbps |
||||
|
Antenna |
2*SMA antenna connectors |
||||
|
5G TX Power |
802.11a |
54M |
23±2dBm |
6M |
26±2dBm |
|
802.11n HT20 |
MCS7 |
22±2dBm |
MCS0 |
26±2dBm |
|
|
802.11n HT40 |
MCS7 |
22±2dBm |
MCS0 |
26±2dBm |
|
|
802.11ac VHT20 |
MCS9 |
21±2dBm |
MCS0 |
26±2dBm |
|
|
5G Receiving Sensitivity |
802.11ac VHT40 |
MCS9 |
21±2dBm |
MCS0 |
26±2dBm |
|
802.11ac VHT80 |
MCS9 |
21±2dBm |
MCS0 |
26±2dBm |
|
|
802.11a |
54M |
-75dBm |
6M |
-92dBm |
|
|
802.11n HT20 |
MCS7 |
-72dBm |
MCS0 |
-90dBm |
|
|
5G EVM |
802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB |
||||
|
ppm |
±20ppm |
||||
|
WAN |
1个10/100/1000M WAN, support 24V~48V POE power supply |
||||
|
LAN |
1个10/100/1000M LAN |
||||
|
Power supply |
PoE 24V~48V passive PoE, DC 12~24V |
||||
|
Power consumption |
<10W |
||||
|
RST button |
Press and hold for 6 seconds to restore factory default configuration |
||||
|
Indicators |
SYS, WAN, LAN, signal*5 |
||||
|
Dimension |
196mm*86mm*40mm |
||||
|
Weight |
0.4kg |
||||
|
Temperature |
Working: -40°C to 70°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing) |
||||
|
IP Grade |
IP65 |
||||
|
ESD |
Air:±8K, Touch:±6K |
||||
|
Electrical Surge |
Common Mode: 4K, Differential Mode: 2K |
||||
Firmware Specification
|
Wireless operating modes |
Access point (auto WDS), access point (TDMA3 ), station (WDS, TDMA3 ), station (ARP NAT) |
|
Wireless techniques |
Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC) |
|
Wireless security |
WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation |
|
Wireless QoS |
4 queues prioritization on TDMA |
|
Network operating modes |
Bridge, router iPv4, router IPv6 |
|
Network techniques |
Routing with and without NAT, VLAN |
|
WAN protocols |
Static IP, DHCP client, PPPoE client |
|
Services |
DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog |
|
Management |
HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet |
|
Tools |
Site survey, link test, antenna alignment |
Interface

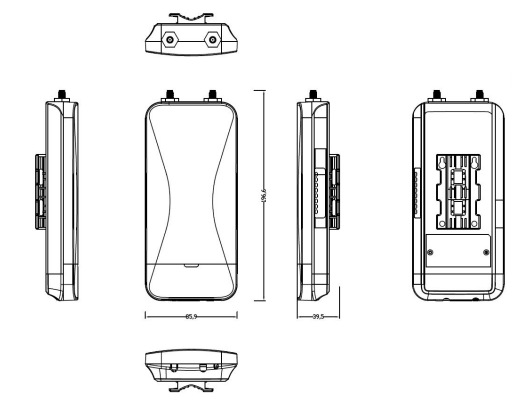

Size:
Accessory
|
CPE |
1 |
|
PoE adapter |
1 |
|
Guide manual |
1 |
|
Gift Box |
1 |
