COME303W Entny Level Wi-Fi IP Phone
价格：
库存：
添加到购物车

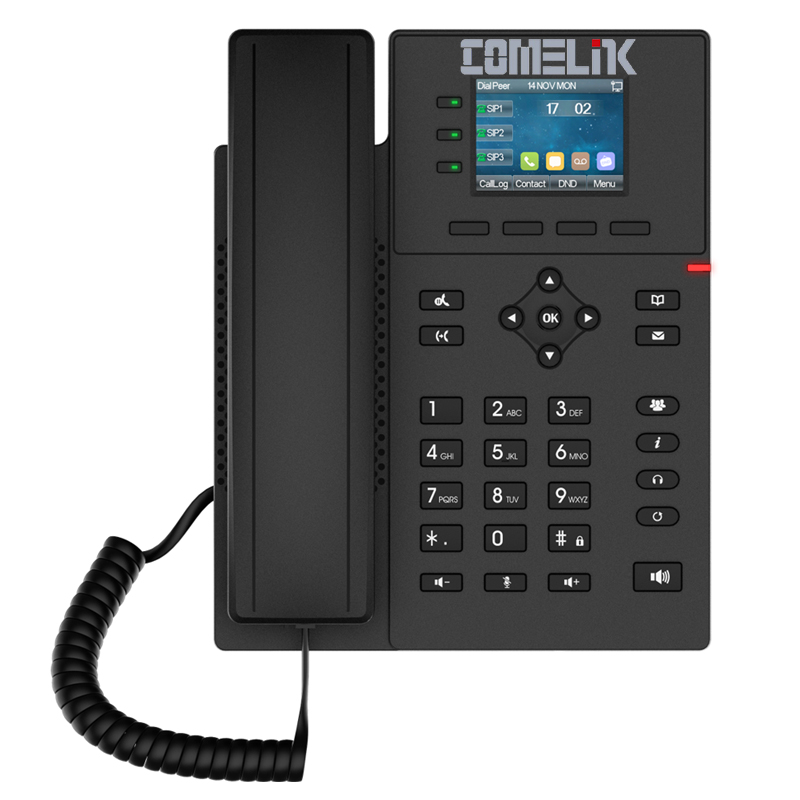

COME303x is the cost-effective color screen IP phone with high performance specially for enterprise.

It features a 2.4-inch 320x240 pixel color screen, supporting 4 SIP lines and local 6-party conferencing to render a user-friendly experience. COME303x has rich functions such as HD audio, providing an efficient and high-quality business communication experience for enterprises.



Highlights

√ 4 SIP lines, SIP hotspot

√ 1000 local phonebook, caller ID, call hold, call transfer

√ 2.4” color display

√ HD audio on speakerphone and handset

√ Support Opus codec

√ Support 6-way local conference

√ Support EHS wireless headset

√ Built-in 2.4GHz & 5GHz Wi-Fi, supporting wireless network connection（only COME303W）

√ Dual Fast ports

√ Stand with 2 adjustable angles of 45 and 50 degrees





COME303

PoE Unabled

COME303P

PoE Enabled

COME303G

PoE Enabled，1000Mbps Ethernet

COME303W

built-in 2.4GHz & 5GHz Wi-F

Generic

  • 4SIP Lines
  • HD Voice
  • PoE Enabled（only COME303P/COME303G/COME303W）
  • Built-in 2.4GHz& 5GHz Wi-Fi（only COME303W）
  • 2.4-inch color screen
  • Handset / Hands-free / Headsetmode
  • Desktop Stand/ Wall mountable( optional)
  • External Power Supply



Phone Functions

  • Local Phonebook (1000 entries)
  • Remote Phonebook (XML/LDAP, 1000entries)
  • Call logs(In/Out/Missed, 600 entries)
  • Blocked list/Allowed list
  • Screen saver
  • Voice Message Waiting Indication (VMWI)
  • Programmable DSS/Soft keys
  • Network Time Synchronization
  • Built-in 2.4GHz & 5GHzWi-Fi（only COME303W）
  • 4GHz, 802.11 b/g/n
  • 5GHz, 11 a/n
  • Support Plantronicswireless headset (Through Plantronics APD-80 EHS Cable)
  • Support Jabra wireless headset(Through Fanvil EHS20 EHS Cable)
  • Support Recording (ThroughServer)
  • Action URL / Active URI
  • uaCSTA



Call Functions

  • Call out /Answer / Reject
  • Mute / Unmute (Microphone)
  • Call Hold / Resume
  • Call Waiting
  • Intercom
  • Caller ID Display
  • Speed Dial
  • Anonymous Call (Hide Caller ID)
  • Call Forward (Always/Busy/No Answer)
  • Call Transfer (Attended/Unattended)
  • Call Parking/Pick-up (Depending on server)
  • Redial
  • Do-Not-Disturb
  • Auto-Answering
  • Voice Message (With server)
  • 6-way Conference
  • Hot Line
  • Hotdesking



Audio

  • HD Voice Microphone/Speaker (Handset/Hands-free, 0~ 7KHz Frequency Response)
  • Wideband ADC/DAC 16KHz Sampling
  • Narrowband Codec: G.711a/u, 723.1, G.726, G.729A/B,iLBC
  • Wideband Codec: G.722, Opus
  • Full-duplex Acoustic Echo Canceller (AEC)
  • Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)/ Automatic Gain Control (AGC)
  • Packet Loss Concealment (PLC)
  • Dynamic Adaptive Jitter Buffer
  • DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
  • VQM voice quality monitoring



Network

  • Physical: 10/100 Mbps Ethernet（COME303/COME303P/COME303W），10/100 /1000Mbps Ethernet，dual bridged port for PC bypass
  • IP Mode:IPv4/IPv6
  • IP Configuration: Static IP / DHCP / PPPoE
  • Wi-Fi Encryption:WPA /WPA2-PSK /802.X EAP
  • Network Access Control: 802.1x
  • VPN: L2TP / OpenVPN
  • VLAN
  • LLDP
  • QoS
  • RTCP-XR(RFC3611), VQ-RTCPXR (RFC6035)



Protocols

  • 0 over UDP/TCP/TLS
  • RTP/RTCP/SRTP
  • STUN
  • DHCP
  • IPv6
  • LLDP
  • PPPoE
  • 1x
  • L2TP
  • OpenVPN
  • SNTP
  • FTP/TFTP
  • HTTP/HTTPS
  • TR-069
  • AES128 & AES256



Deployment & Management

  • Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Export / Import
  • Phonebook Import/Export
  • Firmware Upgrade
  • Syslog



Physical Specifications

  • LCD: 4-inch (320x240) ColorScreen
  • Keypad: 36keys, including
  • 4 Soft-keys
  • 9 Function keys(Hold/Transfer/Voice message/Conference/Phonebook

/MWI/Headset/Redial/Hands-free)

  • 3 Line keys(With LED Indicator Light)
  • 4 Navigation keys
  • 1OK key
  • 12 Standard Phone Digits keys
  • 3 Volume Control keys(Up/Down/Mute (Microphone))
  • HD Handset (RJ9) x1
  • Standard RJ9 Handset Wire x1
  • 5M CAT.5EEthernet Cable x1
  • Desktop Standx1
  • Power Adapter x1
  • StatusIndicator Light x1 (Red)
  • RJ9 Portx2: Handset x1, Headset x1
  • RJ45 Portx2: Network x1, PC x1 (Bridged to Network)
  • Security Slotx1
  • DC Power Input: DC5V / 1A（COME303W），DC5V / 0.6A（COME303/COME303P/COME303G）
  • Power Consumption(Adapter):218~2.39W（COME303W），0.84 ~1.4W（COME303/COME303P/COME303G）
  • Power Consumption(PoE):2.12~3.49W（COME303W），32 ~2.09W（COME303/COME303P/COME303G）
  • Working Temperature: 0~45℃
  • Working Humidity: 10~95%
  • Installation:
  • Desktop Stand
  • Wallmountable( optional)
  • Color: Black
  • W/CTN:9.05kg（COME303W/COME303）,8.55kg（COME303P/COME303G）
  • W/CTN: 9.76kg（COME303W/COME303）,9.26kg（COME303P/COME303G）
  • Device Dimensions:
  • Desktop Stand(45°): 169x203.6x172.7 mm
  • Desktop Stand (50°): 169x194x181 mm
  • Wallmountable: 4x207.6 mm
  • Gift BoxDimensions: 250x220x55mm
  • Outer CTNDimensions: 460x300x270mm(10 PCS)
